Residential Water Heater Replacement in Roseville
US Construction & Remodeling Corp. completed this residential gas water-heater replacement in Roseville, California after the existing tank began leaking from the bottom. The completed installation documents the expansion tank, seismic restraints, drain pan, gas connection, water connectors, and vent connector.

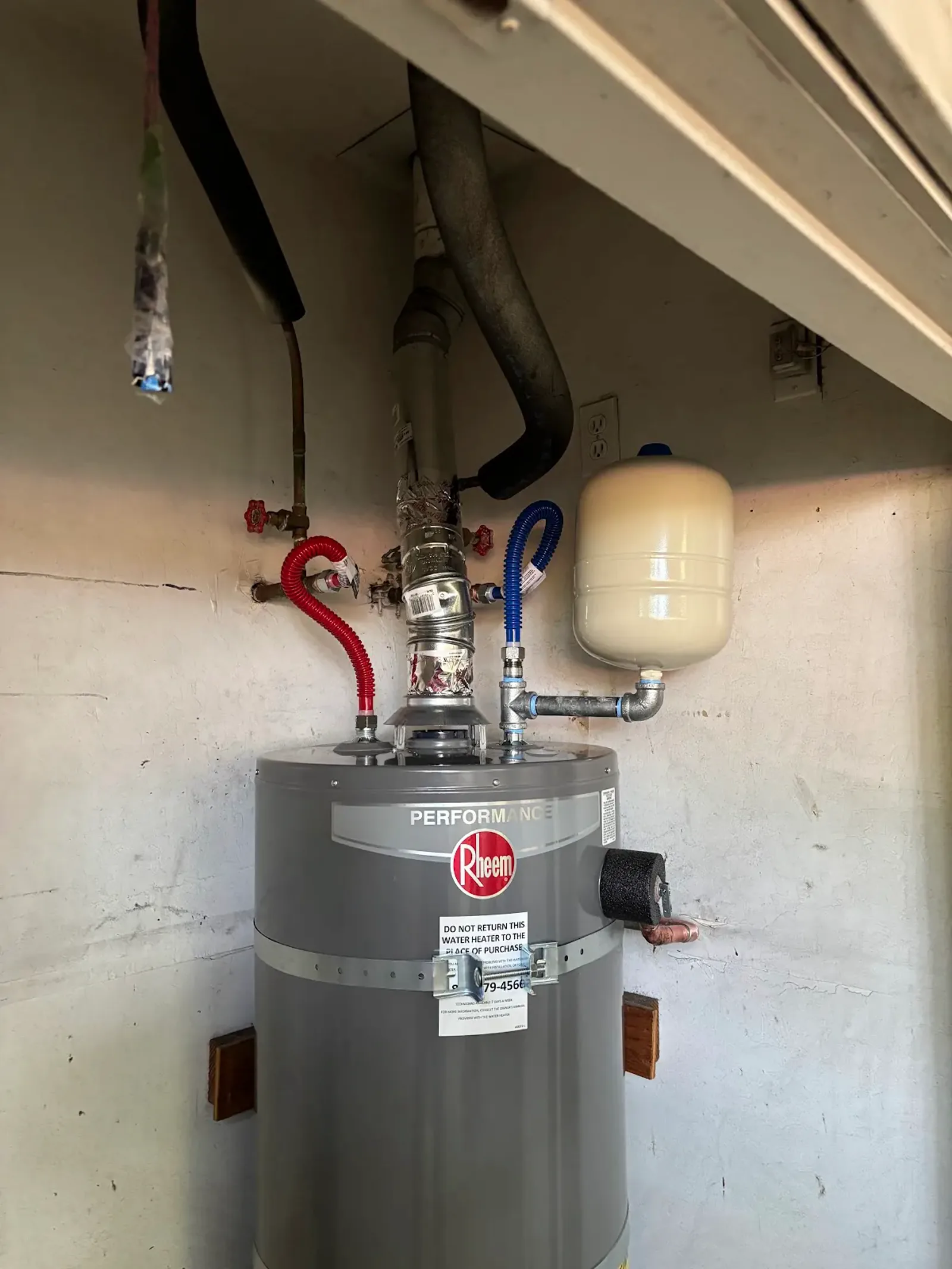

Completed Roseville replacement with the expansion tank, seismic restraints, drain pan, water connections, gas connection, and vent connector visible.
Project at a glance
A Roseville replacement completed after the existing tank began leaking
This February 2026 Roseville project shows how a leaking residential gas water heater moved from diagnosis to an organized replacement and verified hot-water operation.
Property and project type
Residential gas storage water-heater replacement
Completion date
February 2026
Reported condition
Water was leaking from the bottom area of the existing residential tank.
Documented result
The completed system was photographed after start-up and operating checks.
Project evidence
Five original completed-installation photographs · Completed by US Construction & Remodeling Corp.
Why the leaking tank was replaced
A leaking tank body is different from a serviceable external connection
Water near a water heater can come from a connector, valve, relief path, drain, or the tank itself. The field account for this project identified leakage at the bottom of the existing tank, and the approved path moved to replacement.
USC confirmed the leak source before replacement and reviewed the unit type, access, fuel, visible connections, and proposed scope with the homeowner.

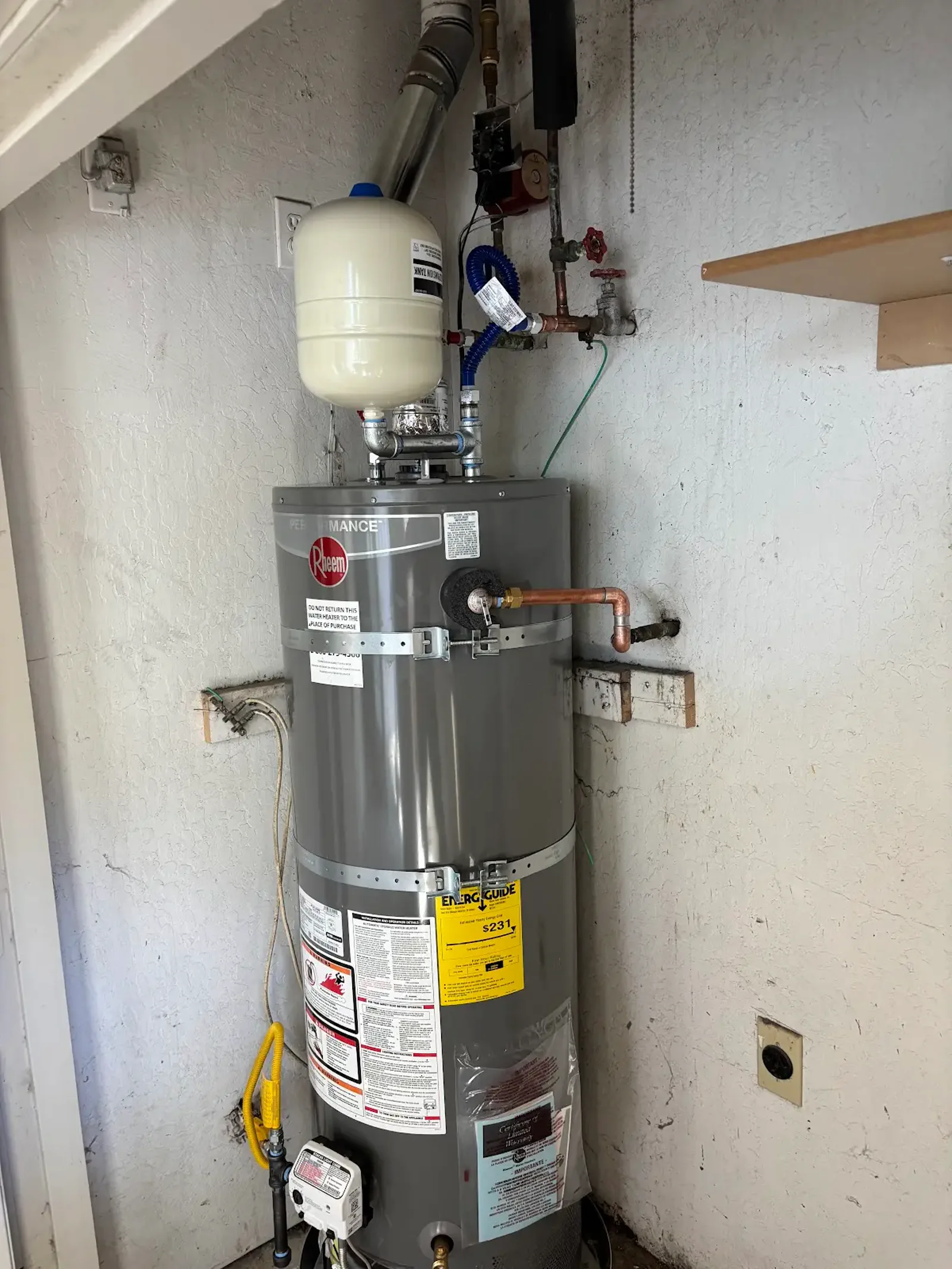

Completed-system overview showing the replacement tank and accessible installation components.
Replacement chronology
From the leaking tank to the completed installation
Service condition confirmed
The existing residential gas water heater was evaluated after leakage was reported at the bottom of the tank.
Replacement scope reviewed
The equipment, location, accessible connections, vent route, gas connection, restraints, pan, and supporting materials were considered before work proceeded.
Existing unit removed
The old water heater was taken out so the approved replacement and related accessible components could be installed.
New gas water heater installed
The replacement included new water connectors, an expansion tank and fittings, seismic restraints, a drain pan, and gas-connection work.
Vent and accessible connections addressed
The completed photographs document the vent connector and the visible water and gas connection areas around the new unit.
Start-up and closeout checks completed
The unit was started, hot-water operation was checked, and accessible water and gas connections were reviewed for visible leakage before closeout.
Work completed
The project record shows more than a new tank

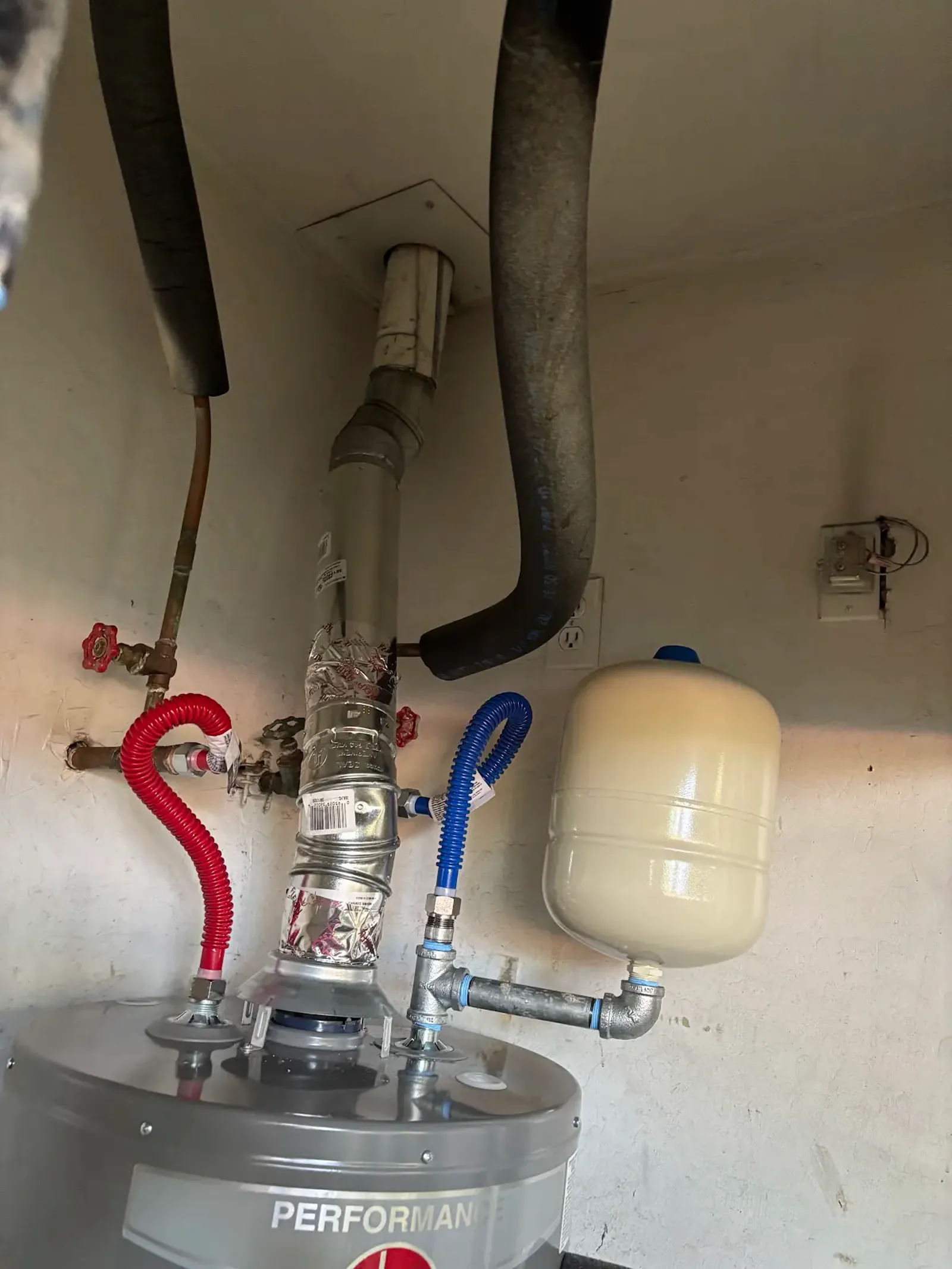

The photos document the replacement tank together with the expansion tank, new flexible water connectors, seismic restraints, drain pan, gas connector and accessible gas piping, and the vent connector above the draft hood.
A new ball valve and related fittings completed the accessible water-connection work around the replacement unit.
How the installation was checked
Operational checks completed before project closeout
The field account records start-up and practical closeout checks after the installation was assembled.
- Hot-water production and temperature were checked after start-up.
- Burner and pilot operation were observed.
- Accessible gas connections were checked for leakage.
- Accessible water connections were checked for leakage.
- The visible completed condition was photographed for the project record.
These closeout checks confirmed hot-water operation and the accessible connections before homeowner handoff.

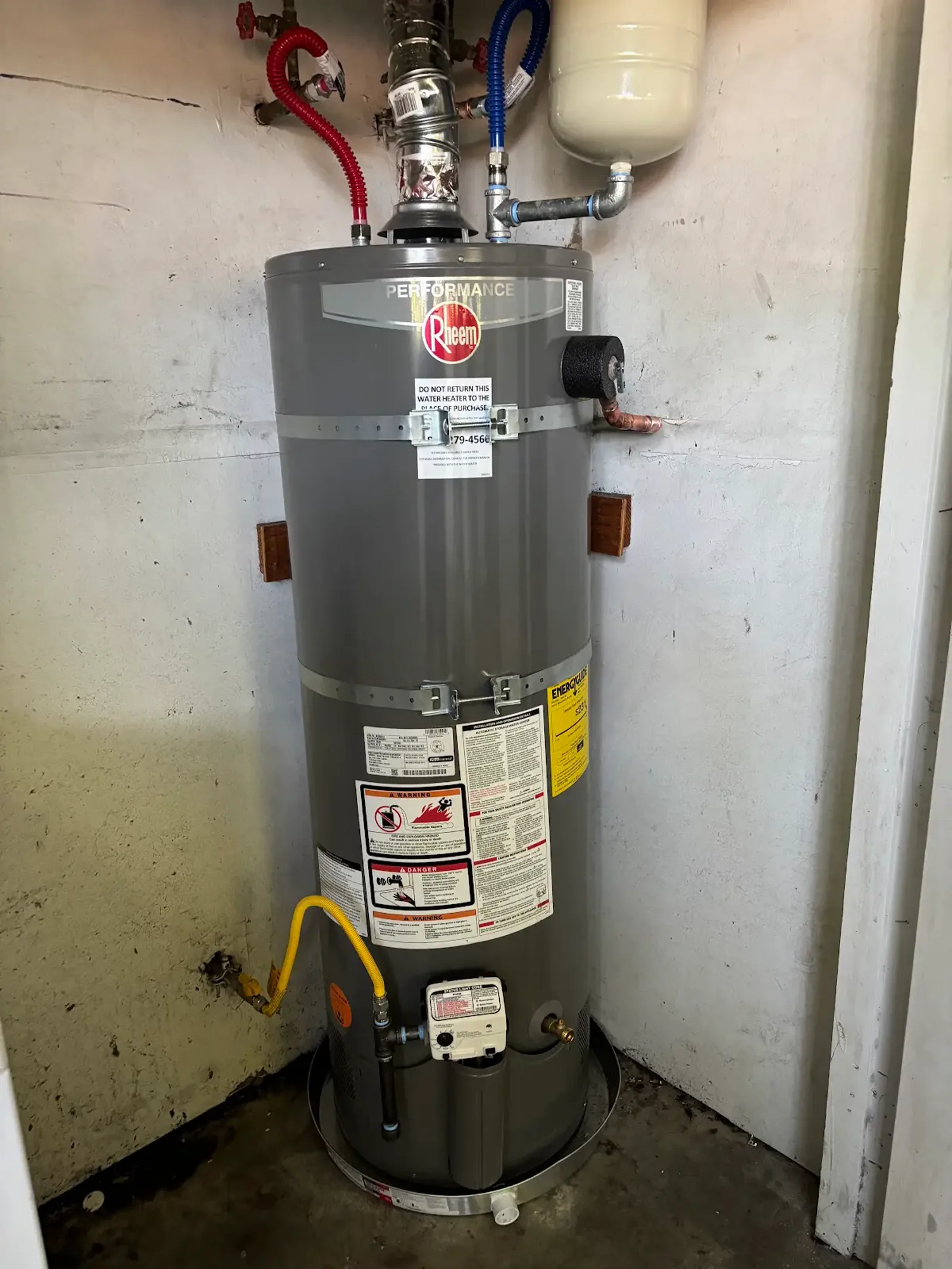

Lower portion of the completed system showing the control, gas connection, seismic restraints, and drain pan.
2026 planning context for comparable projects
What affects a comparable residential replacement price
Residential water-heater replacement pricing changes with tank type and capacity, location and access, removal, venting, gas and water connections, restraints, pan and drainage conditions, expansion control, permit responsibilities, and corrections discovered at the site.
For comparable residential gas water-heater replacement projects, USC's preliminary 2026 planning range is approximately $3,800–$8,000. Actual pricing depends on equipment type and capacity, access, permit and inspection requirements, venting, gas and water connections, required installation corrections, removal and disposal, and the final approved scope.
Lower-complexity projects
Accessible location, like-for-like equipment, serviceable connections, and limited correction work.
Higher-complexity projects
Difficult access, equipment or capacity changes, venting or connection corrections, permit requirements, and additional installation work.
Completed installation photos
Five documented views of the Roseville project
Every image on this page comes from this USC project. Because there is no approved before photograph, the gallery presents the finished installation rather than a before-and-after comparison.
What homeowners can take from this project
A good replacement scope connects the new appliance to the conditions around it
Confirm the leak source first
Water near the tank does not always mean the tank body failed. The source and unit condition should be confirmed before replacement is authorized.
Review connected components
Access, venting, water connectors, gas connection, restraints, pan, and expansion conditions can affect the proposed scope.
Close with operating checks
Start-up, hot-water operation, and accessible leak checks help turn an installed appliance into a documented completed system.
